Pediment’s evolution (Part 1)

By Vittorio Roveda

(Text and pictures copyright)

To support my theory that visual narrative had to move from the limited space of lintels to the larger and looser space of pediment I had to look in detail to the latter in conjunction with temple architecture. This has brought me imagine a classification of pediments, which I do not use here for simplicity.

We are living in a world dominated by images. Humans always felt the need to invent images of supernatural being that could help them in their desired tasks; then images were invented of gods to venerate, subject to rituals, particularly in in India. The first examples of visual storytelling are enlightening architectural elements of many Indian temples (Barhut, Sanchi, Ellora, Amaravati, etc.) These images had a fundamental role in the development of Indian religions, the echo of which was felt in Cambodia since the 6-7th centuries.

In Khmer architecture, temples dedicated to one god or another, the image of a god was situate on medallions along or on an arching ribbon or amongst the vegetal branch decorating a lintel.

From  the 10th century, usually lintels had the carving of a hieratic god at the centre of a rich vegetal scroll. His image was comparatively small, such as Indra on his three-headed Airawata elephant, Vishnu on Garuda, and series of deities of the Hindu pantheon

Exceptionally rare were lintels entirely covered by godly images or of events related to them. Some lintels of Sambor Prei Kuk’s towers even have narrative stories filling the lintel space (tower S1). A most educating example is the lintel of Wat Eng Khna (second half of 7th century) where not a single more image would fit the layout.

               Through scholarly research published by eminent scholars in the last 20 years, it is clear that in Khmer art, the narrative power of the lintel was fading from the 10th century. Lintels had a restricted narrative potential also because their size/format was too small and crowded by pure ornamental elements (vegetal scrolls and pearl’s colliers cascades).The true function of a lintel is of architectural support.

               A larger space had to be found where the new myths, regularly arriving from India, could be visually narrated. Worshipers relentlessly needed to see better and larger images of the gods they wanted to venerate. It was essential to have images clearly readable from faraway, perceived closer and alive, able to listen to the supplicant. On lintels, the beautiful thick large vegetal branches kept suffocating the small central image (hieratic god).

Being larger and of flexible in size, the pediment became more and more the instrument for carrying visual narration, often embodying several key events of a story.

With regard to lintels, examples of classification are perfectly documented in Khmer classical literature, especially the comprehensive works of Madame de Corail Rémusat (1951), P. Stern (1920), and J. Boisselier (1966). There also is a technical study of lintels and pediments in Khmer art, written in 1990 by René Dupont as an addenda to the book by Claude Jacques on Angkor (Bordas 1990: 171-183). It defines pediment types, from inverted U to triangular and then to polylobate, along a scheme that in part I share. Unfortunately, his professional engineer study was entangled with the notion and classification of “styles”.

Inverted-U pediments disappeared when brick construction was abandoned in favour of sandstone (different types of sandstone/arenaria). With the increasing power of the King, temples were built in hard stones with many sections in wood. Even when the basic structure was in laterite, the surface was always embellished with stone panels and lintels.

To explain my view on the evolution of lintels and the development of pediments, I prefer to attach a large number of explicatory photographs, rather than lengthy written discussions.

Personal view

After having studied the evolution of lintels of Khmer temples following the magisterial work of Jean Boisselier (1966:155) I developed my theory on the birth of pediments.

Before the 9th century, lintels were usually carved with thick curved band carrying medallions of gods or saints; then a lot of accessories took over the space filling the lintel with scrolls of flowers and cascades of pearls and playing nagas.

Starting from the 9th century lintels seemed to be losing some their impact: too small for temples that were becoming larger. To enhance their importance, a long and thick sandstone band was added to the top, carved with rows of small rishis or deities inside tiny shrines (see Pilkinthorne 2007).The lintel acquired a well-coordinated heavier impact. However this band was an addition to the original lintel and artists longed for larger, cleaner space for representing myths or storytelling. The only alternative was the space over the lintel in the wall of the building. A depression, was carved in this wall, initially left blank, later carved with small niches to be plastered with gods’ images (Preah Koh)

In my paper Archaeology of images No.22 we will see how pediments become rapidly of narrative type. The easily visible function of narrative had its potential increased with larger images on the wider space of the pediment, relegating the lintel to a pure functional element. I like to say that narrative “migrated” from lintels to pediments. The effect was exhilarating especially when visual narratives pediments were added to the temple’s entrance gates or to the temple towers, in particular to the temple’s central one, as at Angkor Wat.  Pediments become the best tool for broadcasting visually the meaning and symbolism of narrative scenes.

Following my theory, it is evident the lintels had too little space for developing complex narrative that could be easily readable by the acolytes and to illiterate people that the clergy and the king wanted to be informed. I question if in the progressive trend towards gigantism also in pediments may have not brought some Khmer to consider as pediments also the Baryon’s  gigantic faces on the sides of towers.

Looking in detail at temples, I found the first example of the classic layout at Bakong (end 9th century), on the inner face of the northern door (Glaize 1993: 252): lintel overlaid by an ample pediment circumscribed by a lobate naga (making lobes,curves) ending at both ends with grotesque animal heads. The lobate frame has a sort of flames on top, but in reality that are a vegetal growths, more evident at the top of the nagas than at their sides. Inside the pediment are the silhouettes of three shrines originally for gods. This layout is the classic on all Khmer following architecture

The 8 sanctuary-towers that surround the Bakong pyramid, built in brick, do not have a proper pediment but over the lintel they have a tall niche carved in the bricks of the tower. At the centre are silhouettes of images of gods, that later were moulded in plaster.

After the examples of  Sambor Prei Kuk there is no further evidence of narrative until the Bakong (c.300 years), either due to historical events or to the disappearance of monuments that existed during this time gap.

At this stage of my knowledge I do not think possible to determine accurately the age of a temple on the basis of its lintel/pediment layout. In general, proto-pediment and tabular pediments are the oldest (9th century), but all the other types can overlap in time, be contemporaneous. These layouts’ difference would be secondary to more significant elements (architecture, established chronology) used to date a temple. A progressive linear evolution of carved visual narrative is broken by the extraordinary layout of Banteay Srei at the end of the 10th century.

With my study of the evolution of pediments I am attempting a new approach to the development of Khmer culture.


Boisselier, Jean, Asie du Suf-est, tome I Le Cambodge,, Piczrd,Paris 1966

Boisselier, Jean, Il Sud-est Asiatico, UTET, Tourin 1986

Corail de Rémusat, Gilberte, L’art Khmer, Vanoest. Paris 1951

Glaize, Maurice, Angkor, J.Maisonneuve Paris 1993

Marchal, Henri, Le Décor et la Sculpture Khmers, Vanoest, Paris 1951

Parmentier, Henri, L’Art Khmer Primitif, 2 vols.EFEO, Vanoest edit, Paris 1927

Polkinthorne, Martin, Artists and ateliers, Khmer decorative lintels of the Ninth and tenth  centuries, Udaya No.8,2007

Roveda,Vittorio, Images of the Gods, River Books, Bangkok2 004

Bangkok, February 2018

Fig.1 – from Parmentier (1907)

Fig.2 – Sambor Prei kuk. Different types of kudus. It may be the primordial concept of a pedimednt.

 Fig.3 – Sambor Prei kuk. Different types of kudus. It may be the primordial concept of a pedimednt.

Fig.4 - Sambor Prei Kuk. Kudus of Gandara type
Fig.5 - Sambor Prei Kuk. Kudus of Gandara type

Fig.6 – Hanchei, Kuk Prah That. Shrine with Kudus at each level of the roof.
Fig.7a – Phnom Da. Ashram Maha Rosei.
Fig.7b – Phnom Da. Ashram Maha Rosei.
Fig.8 and Fig.9 – Sambor Prei Kuk. Residual brick structure over the door with sandstone lintel

Fig.10 and Fig.11 – Sambor Prei Kuk.
 ”Flying palaces” possibly with unusual pediments

Fig. 12 and Fig13 – Sambor Prei Kuk. ”Flying palaces” with narrative pediments
Fig13 – Sambor Prei Kuk. ”Flying palaces” with narrative pediments

Fig.14 – Drawing from Parmentier 1907 view of different type of palaces of Sambor P.K.

Fig.15 and Fig.16 – Trapeang Pong. There are remainders of a rectangular brick’s construction that repeats over each false window of the same tower. No proper pediment.

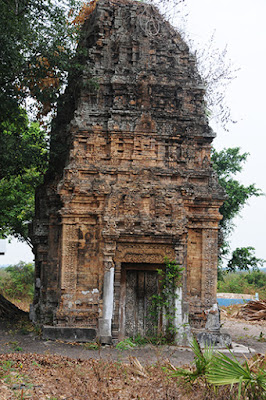

Fig.17 and Fig.18 – Hanchei. Brick tower with tall inverted U pediment; its decoration is lost except what seems to be some flowers.
 Fig.18 – Hanchei. Brick tower with tall inverted U pediment; its decoration is lost except what seems to be some flowers.


Fig.19,20 and 21 – Prasat kampong Preah. Over the door with sandstone lintels is an inverted-U pediment containing three shrine-towers.

Fig.22 and Fig.23 – Damrei Krap, Phnom Kulen. Ancient photographs showing an arched
Pediment (derived from an inverted –U) with at the centre a carved image of a god.

Fig24, Fig.25,– Prasat Thma Dap, Phnom Kulen. Over the lintel is a tabular pediments with a rectangular shrine carved at the centre. In a higher pediment is the carved portrait of a god (?)

 Fig.25,– Prasat Thma Dap, Phnom Kulen. Over the lintel is a tabular pediments with a rectangular shrine carved at the centre. In a higher pediment is the carved portrait of a god (?)
Fig.26 and Fig. 27 – Prasat Thma Dap, Phnom Kulen. Over the lintel is a tabular pediments with a rectangular shrine carved at the centre. In a higher pediment is the carved portrait of a god (?)

Fig.28 –Lolei. Rectangular space filled by giants or being similar to Garuda.

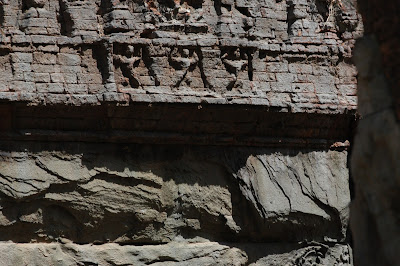

Fig 29 and Fig .30 – Lolei. tabular pediment with a central shrine with a figure. On fig,29 notice the large
chunk a rock inserted at the top of the lintel. Was-it the first idea of enlarging the lintel? The poor quality of the slabs rock of schistose sandstone did not allow any carving.
The tabular pediment shows figures, some with wings.
Fig.31 an Fig.32 - Bakong’s south-eastern tower. U-shaped inverted pediment with ogival recesses for hosting some deity, later modelled in white plaster

Fig.33, 34 – South-western tower and southeaster tower each with a brick proto-pediment with niches for hosting sacred images

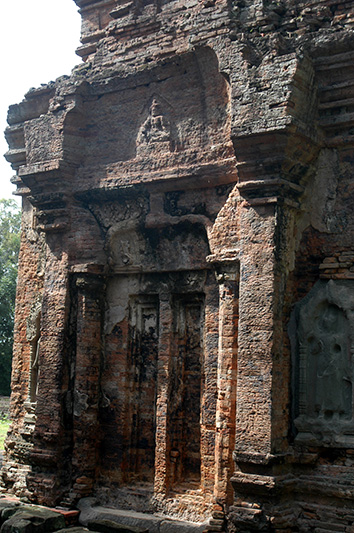

Fig.35 and Fig.36– Pra Koh. U-shaped pediment with the image of a god carved into the brick, later to be modelled in white plaster


Fig.37 andFig.38 – Pra Koh. Detail of the carved-brick later to be converted and modelled in white plaster

 Fig.39 – Pra Koh. Tower with double U-shaped pediment originally containing some religious imag

Fig.42 - Postcard if Preah Koh. Each of the towers had an inverted-U pediment, occasionally with a smaller lobe,

hosting the images of a god carved on bricks but latter modelled in plaster. (Photo before restoration)


Fig.43 and Fig.44 – Prasat Andet. No pediments left.

 Fig. 45 and Fig.46 -  Prasat Phum Prasat. No pediments but a curved terminal of the tower, perhaps with images of some Gods,as in India.
Fig.47,Fig.48 -  Lolei. Tabular pediment with traces of images



Fig.49  - Lolei.  Eroded tabular pediment with images carved in the bricks


End of Part One
